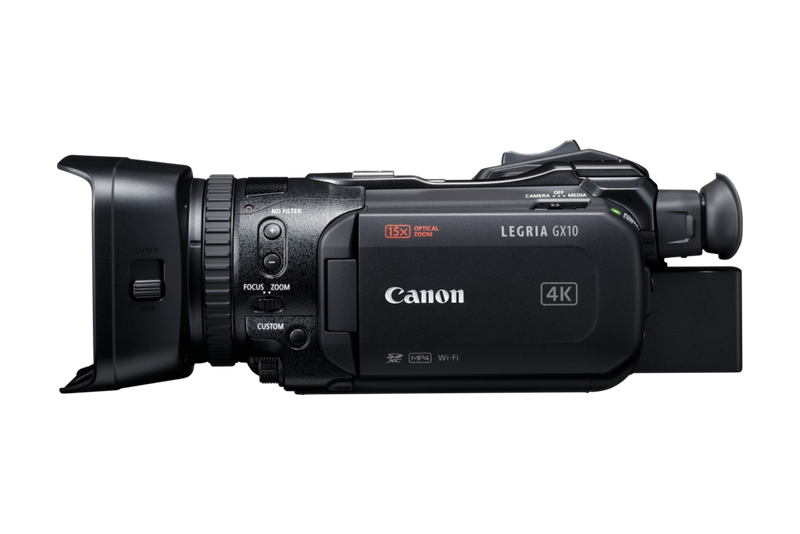

Canon LEGRIA GX10
Specifications
4K 50p
15x Zoom
Dual Pixel CMOS AF
Key Features
4K, 50p
4x Resolution of Full HD
Wide DR
Extends DR to 800%
Wide Angle Lens
25.5mm Wide Angle Lens
Specifications in detail
Internal Recording
Standards
MP4
Compression Format
MPEG-4 AVC / H.264
Audio Format
MPEG-4 AAC-LC (16bit 2CH)
Audio Sampling Frequency
48KHz
Colour Sampling
YCC420
Frame Rate
50p / 25p
Bit depth
8 bit
Resolution & Bit Rate
3840x2160 (150Mbps)
1920x1080 (35/17Mbps)
1280x720 (8Mbps @ 50p / 4Mbps @ 25p)
Simultaneous Internal and External Recording
External Recording Only
Colour Sampling
YCC4223
Frame Rate
50p / 25p
Bit depth
8 bit @ 3840x2160, 10 bit @1920x1080
Resolution
3840x2160
1920x1080
Slow and Fast Motion Recording
Fast Motion
2x, 4x, 10x, 60x, 120x, 600x, 1200x @50p
Slow Motion
0.5x (3840x2160 @ 25p, 1920x1080 / 1280x720 @ 50p/25p)
0.25x (1920x1080 / 1280x720 only)
Standards
DCF, Exif Ver2.3 compliant
Compression Format
JPEG
Resolution
Same as video mode
Recording Media
Recording Media
SD / SDHC / SDXC card
Speed
Minimum Class 6 recommended. Class U3 recommended for 150Mbps and Slow & Fast Motion recording
Number of Slots
2
File System
FAT32 / exFAT
Maximum File Count
Approx 450,000
Maximum Continuous Recording Time
12 hours
Sensor
Type
1.0-Type CMOS
Total Pixels
Approx 13.4MP (4268x3148)
Effective Pixels
Approx 8.29MP (3840x2160)
Pixel Pitch
3.2x3.2μm
Filter
RGB Primary Colour Filter
System Frequency
50Hz
Scanning System
Progressive
Minimum illumination
1.4 lux
Low Light Mode
0.1 lux
Image Processor
Type
Dual DIGIC DV 6
Lens
Focal length
8.3 - 124.5mm
35mm Equivalent Focal Length
25.5 - 382.5mm
Zoom ratio
15x
Maximum Aperture
f/2.8-4.5
Minimum aperture
f/11
Lens Configuration
14 groups of 18 elements (double aspherical and single Hi-UD lenses)
Aperture Construction
9 blade iris
ND filter
3 densities, turret switched, motor driven. ND1/4, ND1/16, ND/64
Focus Adjustment
Inner focus
Minimum Subject Distance
10mm at wide end, 60cm across range
Lens Ring
Switchable between Focus and Zoom
Zoom Speed
Adjustable, Variable or Constant
Filter diameter
58mm
Lens Converters
Optional TL-U58 1.5x Teleconverter, Optional WA-U58 0.8x Wide Attachment
Lens hood
Supplied
Lens cap
Supplied
Digital zoom
300x, manual mode only
Digital Teleconverter
2x, cannot be used with digital zoom
Image stabilizer
5-Axis with Optical lens shift and electronic pitch, yaw, roll
Image Stabilizer Control Modes
Dynamic IS (optimised for wide angle), Powered IS (optimised for telephoto), Standard, Off
Exposure Control
Shooting Modes
Auto, P (program), Tv (shutter speed priority), Av (aperture priority), M (manual), SCN (scene)
Scene Modes
Portrait, Sports, Snow, Beach, Sunset, Night, Low Light, Spotlight, Fireworks
Metering System
Auto, P, Av, Tv, Portrait, Sports, Low Light: Centre-weighted average metering
Snow, Beach, Sunset, Spotlight, Night: Segment evaluative metering
Fireworks, Fixed exposure (1/50 sec), M: No metering
Exposure Compensation
Highlight AE, Exposure lock
Exposure Compensation Amount
+/-3 stop when locked, +/-2 stop in Auto. Half stop increments
Auto Backlight Compensation
Yes
Forced Backlight Compensation
Yes, except in Auto, Fireworks, and Wide DR
Auto Gain Control limit
Manual: 0-29dB in 1dB increments
1/4 speed Slow Motion: 9-29dB in 1dB increments
Wide DR: 9-29dB in 1dB increments
1/4 speed Slow Motion and Wide DR: 18-29dB in 1dB increments
Face Priority
Yes
Shutter Speed Range
1/2 to 1/2000 sec in M and Tv modes. Other modes vary to optimise scene
Gain Range
0-42dB (9-42dB in Wide DR) in 1dB increments.
Zebra Pattern
70% or 100%
Focusing
System
Dual Pixel CMOS AF across 80% horizontal, 80% vertical field of view, Contrast AF
AF Modes
Continuous AF
AF boosted MF
Manual
AF Operating Range
10mm - infinity (wide angle)
60cm - infinity (across zoom range)
AF Illumination Range
50 lux - 100,000 lux
AF Frame Sizes
Auto, Large, Small, Touch
Face Detection and Tracking
Up to 9 faces can be detected, one face or non-human subject can be tracked
Focus Guide
In manual focus, indicates focus direction for tracked objects
Face Only AF
Available
Focus Preset
Available
Focus Ring
User selectable direction and sensitivity
Display Zoom
2x
Peaking
Available in black and white and colour
Distance Display
Meters or feet
Viewfinder
Angle Adjustment
Up to 45° upward
Screen size
0.24" (0.61cm)
Resolution
1.56 million dot equivalent
Eyesight Adjustment
+2 to -5 diopter
Field of View Coverage
100%
Eyecup
Supported
Brightness Adjustment
Available
Display
Type
Wide LCD supporting wide colour range
Touchscreen
Electrostatic capacitance system
Coating
Anti-reflective
Size
3.5" (8.9cm)
Resolution
Approx 1.56 million dots
Vari-Angle
Yes
Field of View Coverage
100%
Brightness Adjustment
Available
White Balance
Type
FAWB
Modes
Auto, Daylight, Tungsten, Colour Temperature (K), User setting (x2)
Colour Temperature Range
2000K to 15,000K
Looks
Type
Standard (300% DR), Wide DR (800% DR), Monochrome
Adjustments
Sharpness, Contrast (except Wide DR mode), Colour Depth (except Monochrome mode)
Audio
Built-in Microphone
Stereo Electret Condenser with adjustable frequency response and windscreen
Built in Microphone Directionality
Mono, Normal, Wide
Microphone Input
3.5mm stereo mini-jack, Canon Mini Advanced Shoe
Attenuator
-20dB
Limiter
Available
Compressor
High, Low, Off
Microphone Input Low Cut
200Hz, on or off
Microphone Input ALC link
on or off
Headphone output
3.5mm stereo mini-jack, adjustable volume
Internal Speaker
Yes, adjustable volume
HDMI Audio Output
Yes
Notification Sounds
Adjustable
Audio Scenes
Standard, Music, Festivals, Speech, Meeting, Forest and Birds, Noise Suppression
Input Impedence
5kΩ
Input Sensitivity
-65dBV with mic, -30dBV with line (control at auto position, -12dB full scale)
Output Impedence
100 Ω
Output Signal level
-29dBV (with 16Ω load at maximum volume)
Networking
Wireless Bands
2.4GHz (IEEE 802.11b/g/n), 5GHz (IEEE 802.11a/n)4
Transmission Frequencies and Channels
2.4GHz: 2412 - 2472MHz 1-13ch. 5GHz: varies by destination country
Connection methods
Infrastructure mode, Camera Access Point
Setting Method
WPS (push button / PIN code), manual, search
Encryption
WEP / TKIP / AES
IP Address Settings
Auto (DHCP / AutoIP auto switching), Manual (IP address, subnet mask, default gateway, priority DNS server, substitute DNS server)
Browser Remote
With compatible iOS and Android devices
FTP Transfer
Yes (movie only)
Others
Timecode Drop Frame
On or off
Timecode Count-up systems
Regen, Rec Run, Free Run
Date and Time
Selectable, World Clock support
Camera Data Recording
Shutter speed, aperture, gain, and others can be stored with recording
Remote Control
In camera and playback modes
Onscreen Markers
Level, Grid, in white or grey
Pre REC
Available, records 3 seconds before record button is pressed
Custom Key & Dial
Tv, Av, M, AGC limit, Exposure Compensation
Colour Bars
EBU or SMPTE
Test Tone
1KHz, -12/-18/-24dB selectable
Assignable Buttons
5
Dual Recording
Yes
Relay Recording
A to B or B to A
GPS Receiver
Optional GP-E2 can add latitude, longitude, altitude to recordings and set clock to UTC
Power Saving Mode
Yes
Software
Data Import Utility
Shoe
Cold shoe, Canon Mini Advanced Shoe
Tripod Mount
1/4-20 UNC
Playback
Fast Forward/Rewind
Approx 5x, 15x, 50x
Slow Forward/Rewind
Approx 0.25x, 0.5x
Single Frame Movement
Yes, single frame or single GOP
Rec. Review
Yes
Trimming
Yes, save as new or overwrite
Copy
Between cards or to computer via USB
Output terminals
HDMI
Mini connector, function display and timecode on/off
USB
Hi-Speed USB Compliant mini-B
Remote
2.5mm Stereo Mini-Jack
Power
DC input
Yes
Built in Battery Charger
Yes
Battery Type
Lithium Ion
Intelligent Battery System
Yes
Recording with BP-828 (supplied)
Up to 95 minutes
Playback with BP-828 (supplied)
Up to 240 minutes
Miscellaneous
Dimensions
Approx 135 x 97 x 214mm (excluding grip belt)
Approx 150 x 97 x 267 (including lens hood and battery, excluding grip belt)
Weight
Approx 1140g (body only, including grip belt)
Approx 1335g (including grip belt, lens hood, BP-828 and 1 memory card)
Operating Environment
For performance: Approx 0 to 40°C, 85% relative humidity
For operation: Approx -5 to 45°C 60% relative humidity
Specifications are subject to change without notice
- Not available in 3840x2160 @ 50p, 3840x2160 Slow Motion or 1280x720 Slow Motion
- HDMI output of 720x576 is 50p only
- Not available in 3840x2160 @ 50p, 3840x2160 Slow Motion or 1280x720 Slow Motion
- 5GHz band is disabled in territories that do not support it
